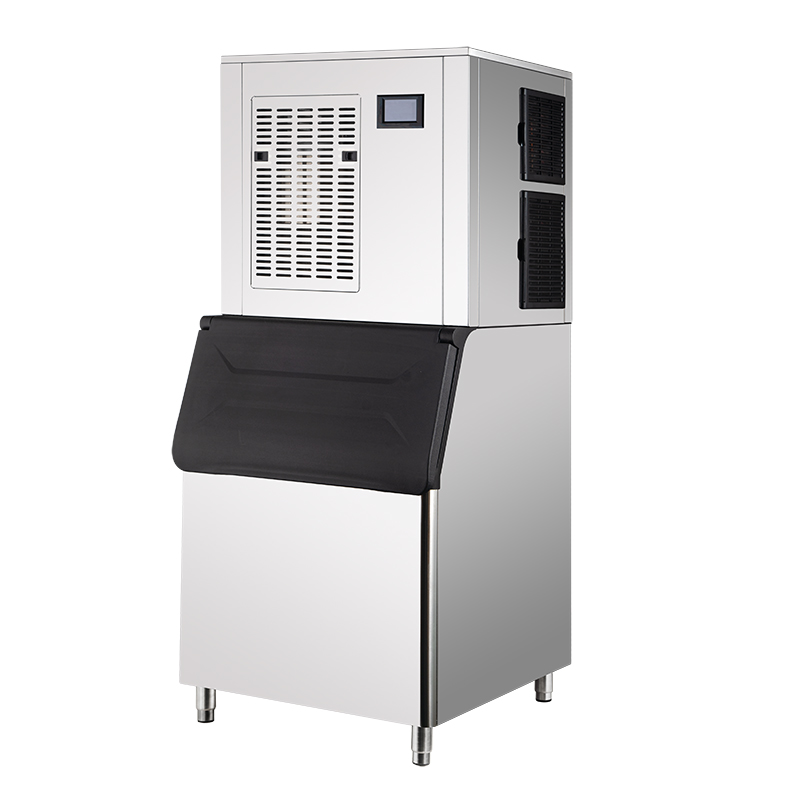

Flake lce Machine 200KG 300KG 500KG/24H

  • Fast ice making within 3 minutes
  • Vertical evaporator fixed design, avoid evaporator wear and leakage
  • Rooling blade working mode, low resistance, low energy consumption, low noise
  • High-strength low-temperature alloy steel evaporator, high stability
  • Food grade PE integral injection molding ice storage bin;
  • High quality 316/304 stainless steel ice blade
  • Whole stainless steel luxury structure design
  • Damping door
  • Auto ice making and fault detection
SKU: AP-0.2TS/AP-0.3TS/AP-0.5TS Category:

Specifications

ModelAP-0.2TSAP-0.3TSAP-0.5TS
Daily output200Kg300Kg500Kg
Capacity150Kg220Kg220Kg
Dimension(mm)560x830x1670760x830x1800760x830x1910
Voltage1P-220V/50Hz/60Hz & 115V/60Hz1P-220V/50Hz/60Hz & 3P-220V/60Hz1P-220V/50Hz/60Hz & 3P-220V/60Hz
Power1000W1500W1800W
RefrigerantR404AR404AR404A
Cooling wayAir/water cooledAir/water cooledAir/water cooled
Material of Shell304/430 stainless steel304/430 stainless steel304/430 stainless steel
OEM & ODM ServiceAvailableAvailableAvailable
CertificationISO-9001, CE,ROHS, etc.ISO-9001, CE,ROHS, etc.ISO-9001, CE,ROHS, etc.
Test conditions: Ambient temperature 15℃; Water temperature 10℃

Description

Flake ice has a water content of about 2%, is dry, not easy to melt, has a smooth surface, and will not damage refrigerated products. The thickness is about 1.5mm-2mm. Compared with snow machines, flake ice has a larger contact area, has the best cooling effect among all kinds of ice shapes, and can increase the beauty of product display for customers and stores. Flake ice has been widely used in major chain supermarkets, buffets, meat processing, seafood markets, small aquatic products, hotel fresh water, vegetable distribution and preservation, food processing, marine fisheries, concrete mixing plants, and chemical industries.

Features

1. Daily production of flake ice 200kg-1000kg, with a thickness of 1.5mm-2mm for you to choose.

2. The evaporator is a one-time formed low-temperature alloy steel, with a scientific flow channel design, and a low failure rate.

3. The three-dimensional evaporator fixed design avoids problems such as leakage of the refrigeration system caused by damaged seals during evaporator operation

4. It uses advanced reduction motors and reducers, which are maintenance-free and low-noise

5. The ice blade is made of SUS304 seamless steel pipein one molding process, which is durable.

6. Flake ice and computer board automatic control, automatic ice making, automatic fault alarm and easy maintenance

7. It has a fully automatic slow-down silent damping door

8. The flake ice machine has a detachable air filter to facilitate daily cleaning and maintenance of the condenser

9. Ice can be produced in three minutes, continuously, to meet your ice needs

10. It uses imported compressors, accessories are guaranteed for two years, and lifetime maintenance
