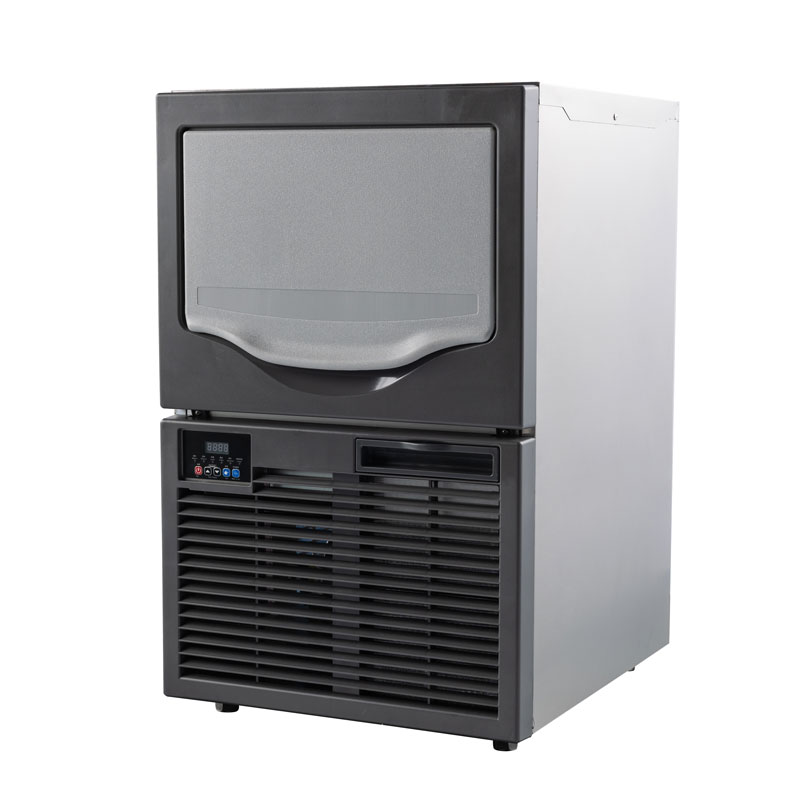

Integrated Crescent lce Machine 70KG 120KG 380KG 480KG/24H

  • Unique UVC LED sterilization system
  • SUS304/430 stainless Steel construction
  • Original intelligent control system
  • Automatic self-inspection
  • Food grade polyurethane foamed ice storage bin
  • Flowing water double-sided ice making
  • All stainless steel ice tray, clean and hygienic
SKU: AM-80/AM-120/AM-160/AM-260 Category:

Specifications

Model AM-160 AM-260 AM-800 AM-1000
Daily output 70Kg 120Kg 380Kg 480Kg
Capacity 50Kg 50Kg 220Kg 220Kg
Dimension(mm) 660x670x1050 660x670x1050 760x830x1880 760x830x1880
Voltage 1P-220V/50Hz/60Hz & 115V/60Hz 1P-220V/50Hz/60Hz & 115V/60Hz 1P-220V/50Hz/60Hz & 3P-220V/60Hz 1P-220V/50Hz/60Hz & 3P-220V/60Hz
Power 700W 800W 1800W 2200W
Refrigerant R404A/R290 R404A/R290 R404A R404A
Cooling way Water cooled Water cooled Water cooled Water cooled
Material of Shell 304/430 stainless steel 304/430 stainless steel 304/430 stainless steel 304/430 stainless steel
OEM & ODM Service Available Available Available Available
Certification ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc.
Test conditions: Ambient temperature 15℃; Water temperature 10℃

Description

Crescent ice is crystal clear, hard, not easy to stick and melt. The moon-shaped ice cubes are beautiful in appearance, can quickly cool drinks, and show their beautiful shape. The crescent ice cubes are closely arranged to achieve the maximum ice storage capacity, which is very suitable for places where ice cubes are used, such as coffee shops, bakeries, cold drink shops, fast food restaurants, Japanese restaurants, etc.

Features

1. The crescent ice maker has a full stainless steel shell, which is sturdy and durable;

2. The crescent ice maker contains a double-sided ice-making plate set vertically, and water flows from both sides of the ice tray to form crescent ice, and the efficiency of one water flow is doubled

3. The Snowman ice maker has the characteristics of reducing the reciprocating frequency of the compressor’s refrigeration and defrost valves, which makes the compressor have a longer service life

4. One-button cleaning function (automatic cleaning, saving labor and time) improves the stability and maintainability of the machine.

5. LCD display screen, operation is clear at a glance, accurately understand the working status of the machine;

6. The inner tank, water tank, and water distribution pipe all meet food grade standards, safe and hygienic;

7. The stainless steel ice tray is not affected by hard water, it is difficult to accumulate scale, and reduce the maintenance cost of the machine.

8. The ice storage bucket adopts PE overall rotational molding process, high-density fluorine-free polyurethane overall foaming, and has high thermal insulation performance;

9. The moon-shaped ice machine contains an easily removable air filter that can filter out grease and dust, easy to clean and easy to disassemble.

10. Using imported compressors, accessories are guaranteed for three years and lifetime maintenance.
