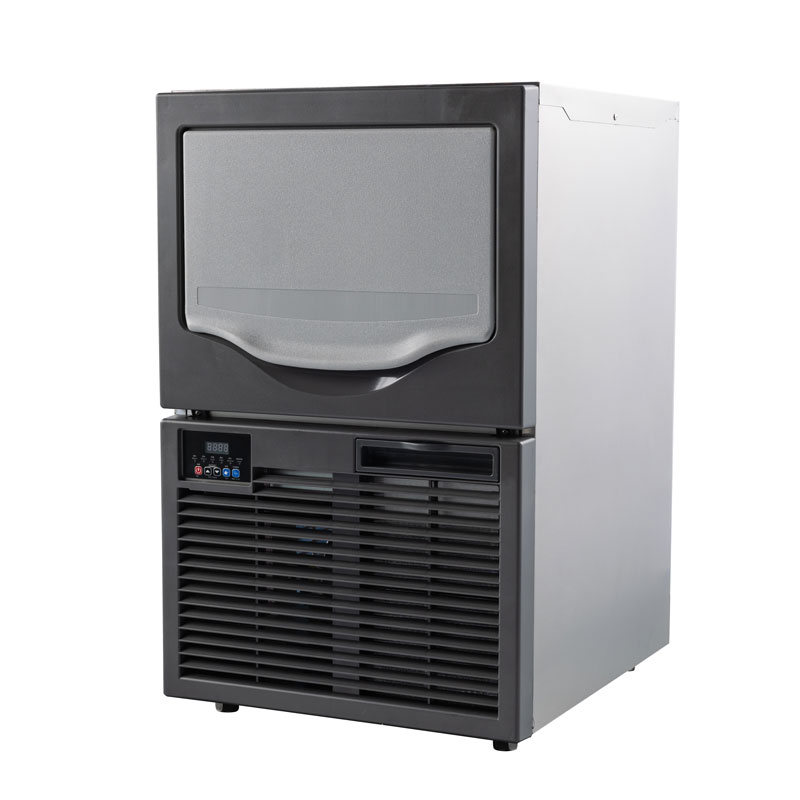

Integrated Granular lce Machine 60KG 100KG 150KG/24H

  • Rotary squeeze ice making, compact structure, automatic separation of ice and water;
  • Floating ball inlet, no residual water, fast ice making;
  • Thickened polyurethane integral foam ice storage bin, high thermal insulation performance
  • Front-mounted radiator for easy cleaning
  • Low noise
  • SUS304 stainless steel strong construction
  • Newest intelligent control system with atuo fault detection
SKU: AF-120/AF-220/AF-330 Category:

Specifications

Model AF-120 AF-220 AF-330
Daily output 60Kg 100Kg 150Kg
Capacity 15Kg 30Kg 30Kg
Dimension(mm) 560x830x1670 560x830x1770 760x830x1880
Voltage 1P-220V/50Hz/60Hz & 115V/60Hz 1P-220V/50Hz/60Hz & 115V/60Hz 1P-220V/50Hz/60Hz & 115V/60Hz
Power 400W 650W 700W
Refrigerant R404A/R290 R404A/R290 R404A/R290
Cooling way Air cooled Air cooled Air cooled
Material of Shell 304/430 stainless steel 304/430 stainless steel 304/430 stainless steel
OEM & ODM Service Available Available Available
Certification ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc.
Test conditions: Ambient temperature 15℃; Water temperature 10℃



Description

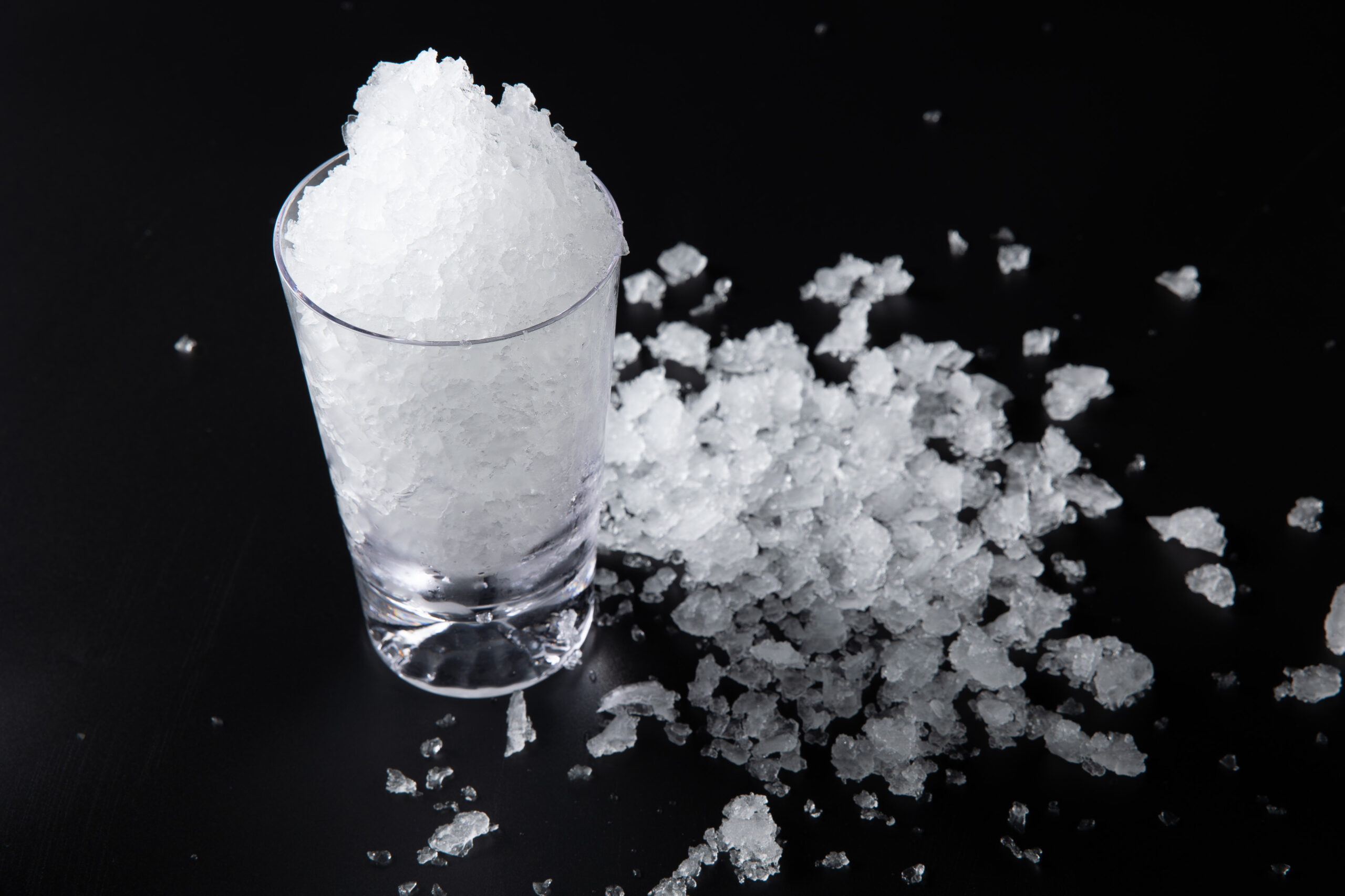

The ice cubes are small and can quickly penetrate into small gaps, making them easy to use and stack. They have a soft texture and do not hurt teeth when chewed. The temperature is slightly below zero degrees, so they can remain moist for a long time on the display rack. They can completely surround the products they touch and cool down quickly. They are very suitable for “contact” display applications, such as hotel sashimi, fresh food booths, small supermarkets, hospitals, laboratories and other places.

Features

1. Daily production of granular snowflake ice 60kg-150kg, which can be customized into mineral block ice. 2. Using advanced reduction motor and reducer, maintenance-free, low noise 3. Rotary extrusion ice making method, compact structure, automatic separation of ice and water, dry and small ice cubes 4. Float-type water inlet, no residual water, eliminating the dehydration and drainage process, rapid ice production in three minutes 5. Granular snowflake ice front radiator, easy to clean 6. With “Smart Core” control system, automatic detection is realized, improving machine stability and maintenance convenience 7. The inner tank sink and water distribution pipe meet food standards, safe and hygienic to use 8. Fully enclosed ice storage bucket, can store 15-30kg of ice 9. Unique appearance design, small size, no space 10. Using imported compressor, accessories warranty for two years, lifelong maintenance.
