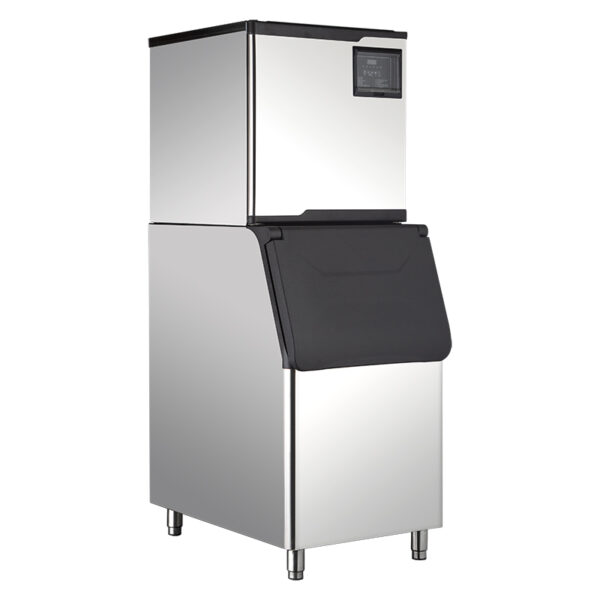

Split Cube lce Machine 150KG 180KG 220KG 250KG 350KG 460KG 590KG/24H

  • Thicken nickel plated ice tray
  • UVC LED sterilization system
  • Quick ice making
  • Adjustable ice thickness
  • Thickened polyurethane integral foam ice storage bin,high thermal insulation performance
  • High precision original intelligent control system
  • Low noise operation
  • SUS304/430 stainless steel frame
  • Imported core components
  • Removable & cleanable filter
  • Damping door
SKU: SD-350/SD-420/SD-500/SD-750/SD-1050/SD-1300 Category:

Specifications

Model SD-350 SD-420 SD-500 SD-550 SD-750 SD-1050 SD-1300
Daily output 150Kg 180Kg 220Kg 250Kg 350Kg 460Kg 590Kg
Capacity 150Kg 150Kg 150Kg 220Kg 220Kg 220Kg 220Kg
Dimension(mm) 560×830×1600 560×830×1600 560×830×1670 760×830×1670 760×830×1670 760×830×1820 760×830×1900
Voltage 1P-220V/50Hz/60Hz & 115V/60Hz 1P-220V/50Hz/60Hz & 115V/60Hz 1P-220V/50Hz/60Hz & 115V/60Hz 1P-220V/50Hz/60Hz & 115V/60Hz 1P-220V/50Hz/60Hz & 3P-220V/60Hz 1P-220V/50Hz/60Hz & 3P-220V/60Hz 1P-220V/50Hz/60Hz & 3P-220V/60Hz
Power 750W 850W 1000W 1000W 1500W 1800W 2000W
Refrigerant R404A/R290 R404A/R290 R404A/R290 R404A/R290 R404A R404A R404A
Cooling way Air/Water cooled Air/Water cooled Air/Water cooled Air/Water cooled Air/Water cooled Air/Water cooled Air/Water cooled
Material of Shell 304/430 stainless steel 304/430 stainless steel 304/430 stainless steel 304/430 stainless steel 304/430 stainless steel 304/430 stainless steel 304/430 stainless steel
OEM & ODM Service Available Available Available Available Available Available Available
Certification ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc. ISO-9001, CE,ROHS, etc.
Test conditions: Ambient temperature 15℃; Water temperature 10℃

Description

Classic hexagonal ice cubes have a large contact area and can quickly cool the required drinks. You can choose ice cubes, half ice cubes or large ice cubes, and the thickness of the ice cubes can be adjusted. It is very suitable for places where ice cubes are used, such as coffee shops, restaurants, fast food chains, hotels, convenience stores, private clubs, etc.

Features

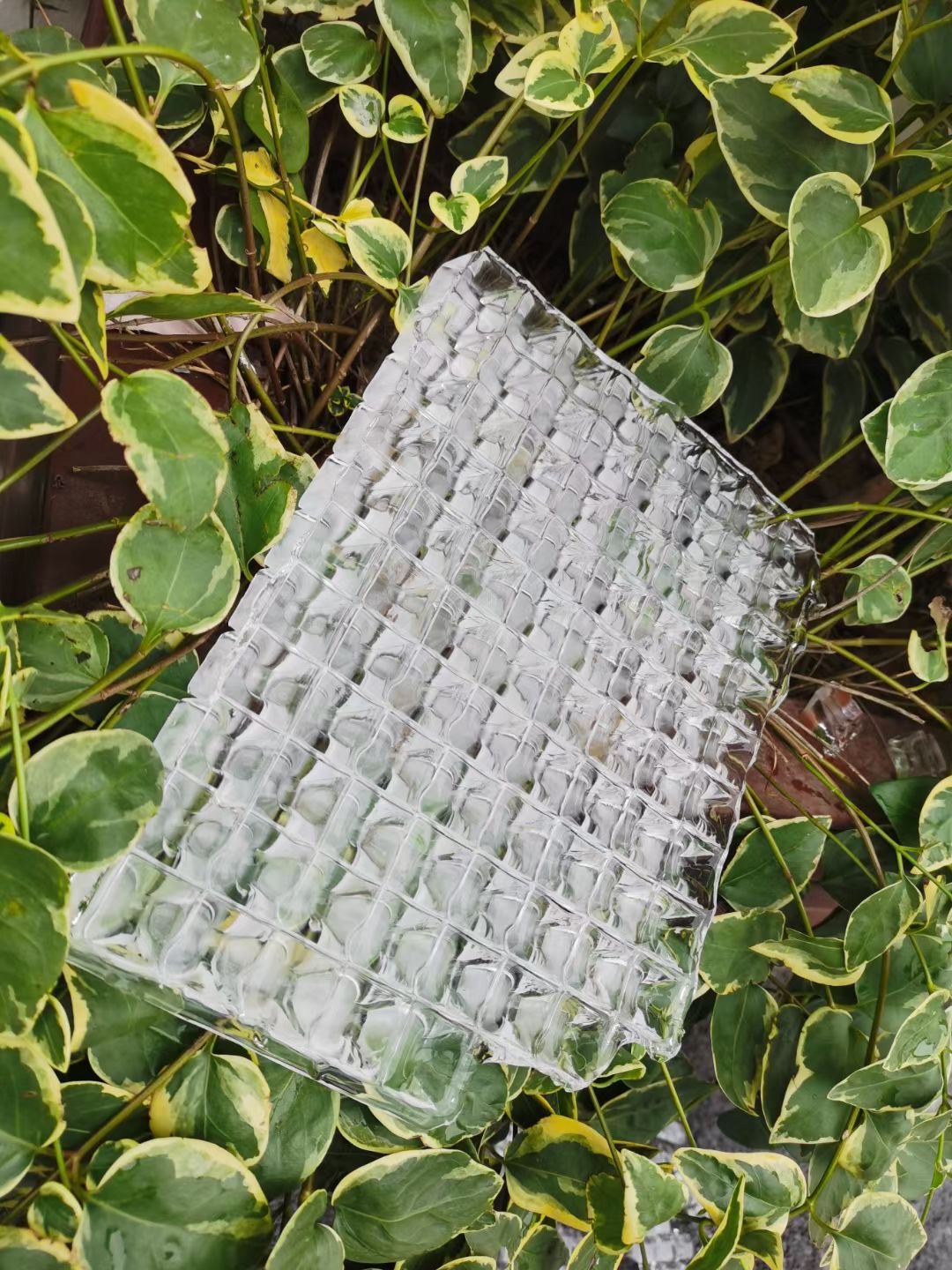

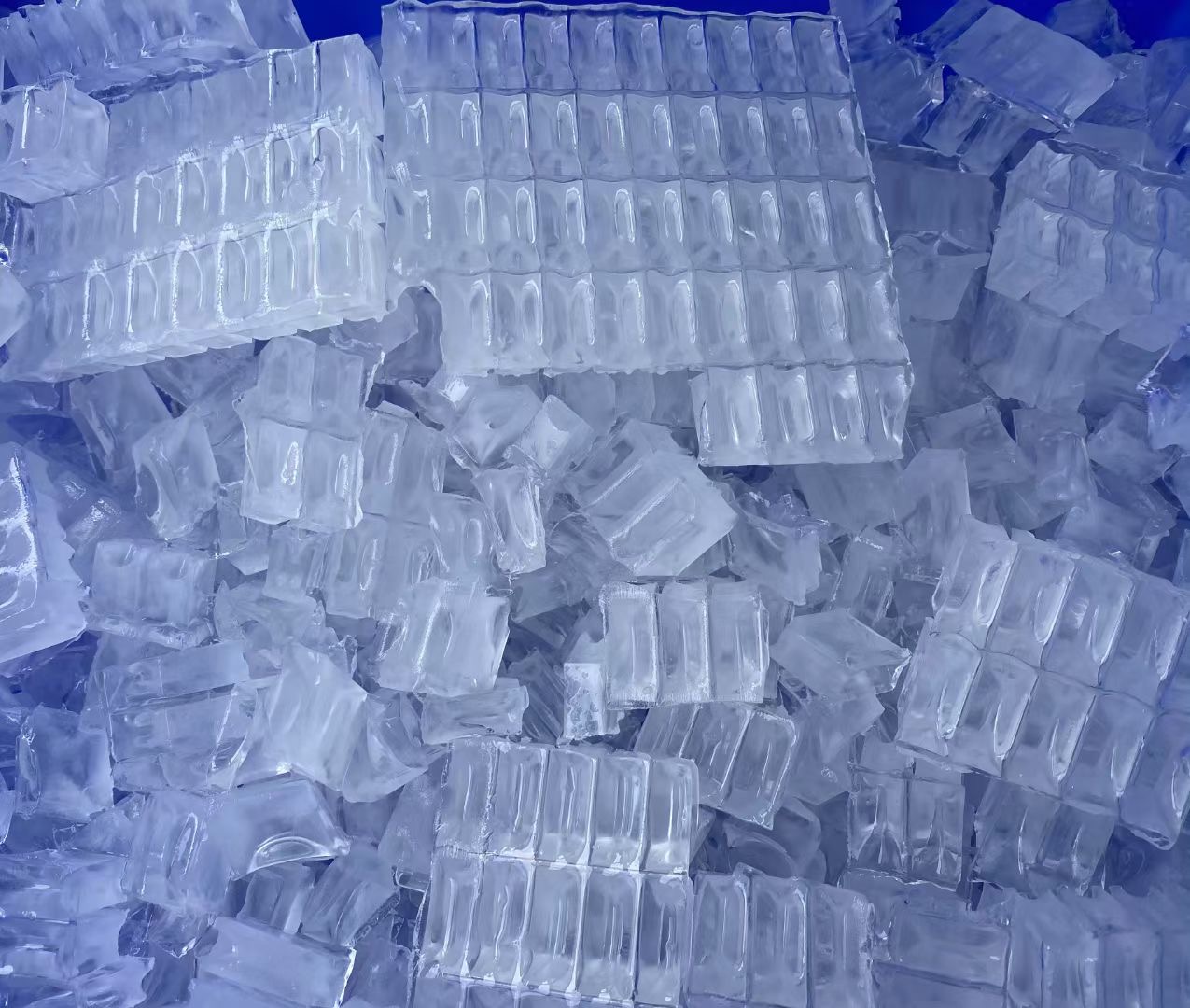

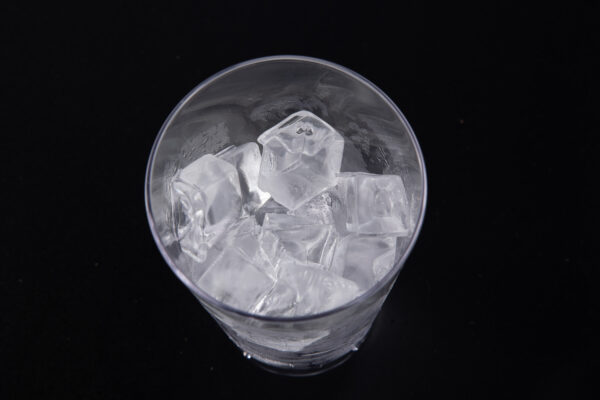

  1.  It can produce 36kg-120kg of 23*23*23mm square ice cubes per day, as well as 28*13*23mm half ice cubes and 28*28*23mm large ice cubes for you to choose from.
  2. With SUS304/430 stainless steel and ABS engineering plastic shell, the machine looks beautiful, sturdy and practical;
  3. The machine contains a nickel-plated copper ice tray with vertical water flow, high ice making efficiency, fast ice dropping and energy saving
  4. The integrated ice cube machine contains a “smart core” control system (automatic ice making, automatic ice dropping, full ice detection);
  5. The machine has a one-button cleaning function (automatic cleaning, saving labor and time), which is convenient for daily maintenance;
  6. LCD display screen, clear operation, accurate understanding of the working status of the machine;
  7. The inner tank, water tank, and water distribution pipes all meet food grade standards, safe and hygienic;
  8. Built-in ice storage bucket (suitable for small and luxury stores);
  9. Using brand compressor, safe, stable and noiseless. Accessories are guaranteed for one year and lifelong maintenance.
  10. The machine contains a 50mm thick overall high-density fluorine-free polyurethane foam layer around it, which has stronger thermal insulation performance and energy saving.
