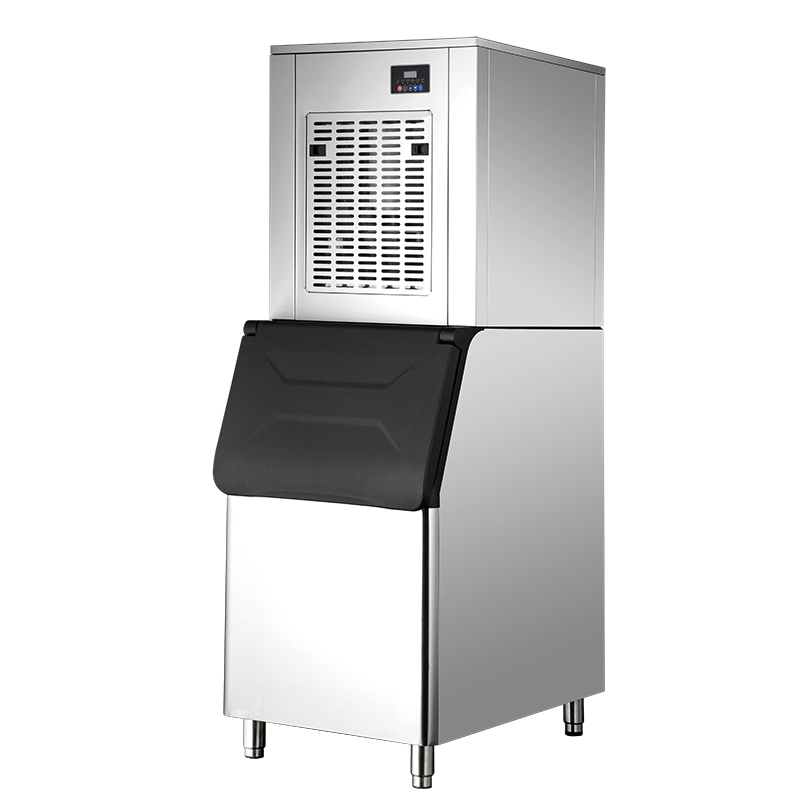

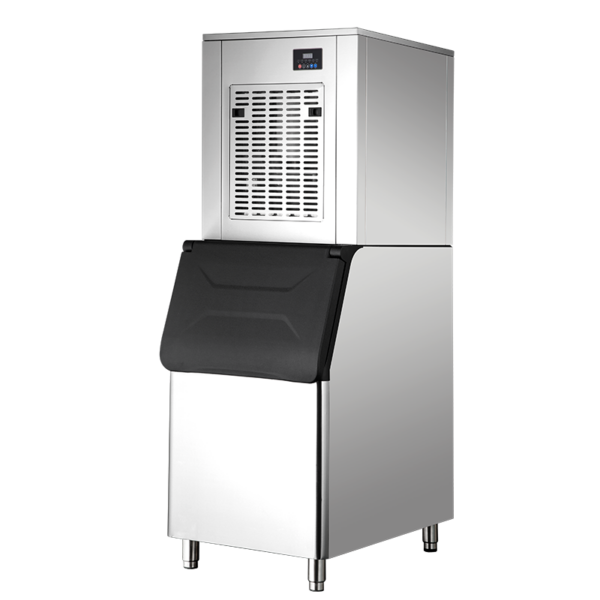

Split Granular lce Machine 230KG 320KG 500KG/24H

  • Rotary squeeze ice making, compact structure, automatic separation of ice and water;
  • Floating ball inlet, no residual water, fast ice making;
  • Thickened polyurethane integral foam ice storage bin, high thermal insulation performance
  • Front-mounted radiator for easy cleaning
  • Low noise
  • SUS304 stainless steel strong construction
  • Newest intelligent control system with atuo fault detection
  • Damping door
SKU: AF-500/AF-700/AF-1000 Category:

Specifications

ModelAF-500AF-700AF-1000
Daily output230Kg320Kg500Kg
Capacity150Kg150Kg220Kg
Dimension(mm)560x830x1670560x830x1670760x830x1910
Voltage1P-220V/50Hz/60Hz & 115V/60Hz1P-220V/50Hz/60Hz & 115V/60Hz1P-220V/50Hz/60Hz & 3P-220V/60Hz
Power1000W1200W1800W
RefrigerantR404AR404AR404A
Cooling wayAir/water cooledAir/water cooledAir/water cooled
Material of Shell304/430 stainless steel304/430 stainless steel304/430 stainless steel
OEM & ODM ServiceAvailableAvailableAvailable
CertificationISO-9001, CE,ROHS, etc.ISO-9001, CE,ROHS, etc.ISO-9001, CE,ROHS, etc.
Test conditions: Ambient temperature 15℃; Water temperature 10℃

Description

The ice cubes are small and can quickly penetrate into small gaps, making them easy to use and stack. They have a soft taste and do not hurt teeth when chewed. The temperature is slightly below zero degrees. They can remain moist for a long time on the display rack and can completely surround the products they touch. They cool down quickly and are very suitable for “contact” display applications, such as hotel sashimi, fresh food booths, small supermarkets, hospitals, laboratories and other places.

Features

1. Daily production of granular snowflake ice 60kg-150kg, which can be customized into mineral block ice. 2. Using advanced reduction motor and reducer, maintenance-free, low noise 3. Rotary extrusion ice making method, compact structure, automatic separation of ice and water, dry and small ice cubes 4. Float-type water inlet, no residual water, eliminating the dehydration and drainage process, rapid ice production in three minutes 5. Granular snowflake ice front radiator, easy to clean 6. With “Smart Core” control system, automatic detection is realized, improving machine stability and maintenance convenience 7. The inner tank sink and water distribution pipe meet food standards, safe and hygienic to use 8. Fully enclosed ice storage bucket, can store 15-30kg of ice 9. Unique appearance design, small size, no space 10. Using imported compressor, accessories warranty for two years, lifelong maintenance.
